A ductless mini-split heats and cools a single room without a foot of ductwork. That is why so many Schaumburg homeowners put one in the room the furnace never reaches. December and January lows here average 17 and 12 degrees, so a system that handles both seasons earns its keep. Here is how the equipment actually moves heat in and out of your home.
Key Points
- A ductless mini-split splits into two pieces: an indoor air handler and an outdoor condenser unit.
- A conduit line carries the power cables and refrigerant tubing between them, so no ductwork is needed.
- Each air handler heats or cools one room, so whole-home comfort takes one handler per room.
- Two to five air handlers can connect to a single outdoor condenser unit.
- Switching the thermostat from cool to heat reverses the refrigerant cycle, so one system covers summer and winter.
How a Ductless Mini-Split Differs From a Wall or Window Unit
A wall or window air conditioner houses every component in one box. The side facing your room is the evaporator section, where the evaporator coil absorbs heat and humidity out of the indoor air. That side also holds a drain pan and a blower fan.
The condenser compartment sits at the back, outside your Schaumburg window or wall. Its condenser coil releases the collected heat outdoors. It also holds a motor-driven fan, an electrical compressor, and the electrical controls, which together produce that steady hum you hear indoors.

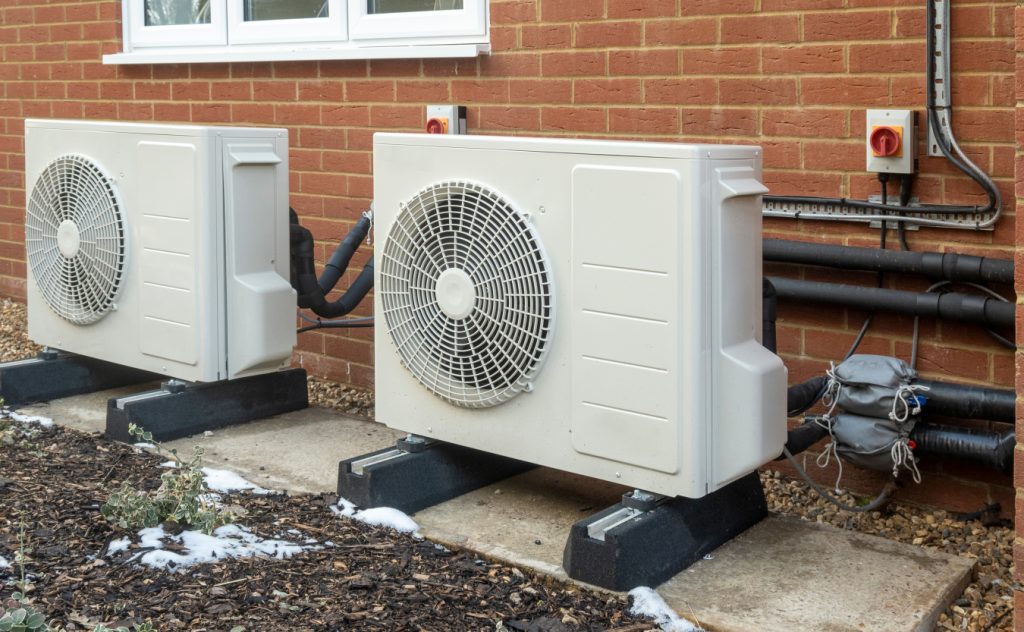

A mini-split uses the same two halves, but they do not sit in one box. The evaporator unit mounts on your wall while the condenser unit rests on the ground outside your home.
That split position buys you two things. The system runs almost silently indoors, and it gives you a far better heating option in winter. Leith Heating and Cooling is veteran-owned and family-operated. Our NATE-certified technicians size and place these units so each handler serves the room it is meant to serve.
Ductless Mini-Split vs. Central Air in Schaumburg
Central air and a mini-split both heat and cool for year-round comfort, and both can handle an entire Schaumburg home. How they move the air is where they part ways.
A central system pulls indoor air through a return duct into the evaporator unit and conditions it. From there the air moves into supply ducts behind your walls, floors, and ceilings until it reaches the vents in each room.
A mini-split skips all of that. The evaporator units, called air handlers, connect to the outdoor condenser unit through a conduit line instead of ductwork. You never install or maintain metal chutes, which also means no ductwork repair and replacement down the road. The ENERGY STAR guide to ductless heating and cooling covers the same equipment from the efficiency side.
Each air handler heats or cools a single Schaumburg room. Whole-home comfort takes one handler per room, which is the same room-by-room thinking behind HVAC zoning in Elgin, IL. Two to five handlers can connect to one condenser unit.
How Ductless Mini-Split Systems Work Step by Step
Those are the basics. Here is the mechanical side of the equipment, season by season.
How a Ductless Mini-Split Cools Your Home
When the indoor temperature climbs above your thermostat setting, the system switches on. The blower fan inside the air handler pulls warm household air into the unit and runs it across the evaporator coil.
Liquid refrigerant inside that coil absorbs the heat from the air passing over it. What is left is cool air. The blower fan pushes it back out into the room or zone that handler serves.
The heat leaves through the conduit. This thin cable runs from each air handler to the outdoor compressor unit and houses the power cables and refrigerant tubing. The refrigerant, now a gas, does the following:
- Travels through the tubing.
- Reaches the outdoor condenser coil.
- Gets pressurized by the compressor, releases the heat and humidity outside your Schaumburg home, and returns to a liquid.
- Travels back through the conduit into the evaporator coil.
- Repeats until the cooling cycle finishes.
So the system cools your home by pulling the heat out and moving it outdoors. That is the same principle behind a heat pump installation in Elgin, IL.
How a Ductless Mini-Split Heats Your Home
This setup costs less to run and is easier on the environment than a wall, window, or central unit. It also keeps you warm through a Schaumburg winter.
Set the thermostat to the temperature you want, then switch it from “cool” to “heat.” The handlers turn on whenever the indoor temperature drops below that level, and the unit draws heat indoors instead of expelling it.
Winter outdoor air still holds heat. Warm air exists outside at any temperature above absolute zero, so the system pulls in cooler winter air and runs the same cycle in reverse.
The refrigerant absorbs that available heat, separates it from the cold, and expels the cold air outdoors. The gaseous refrigerant then carries the warmth through the conduit to every indoor unit.
Frequently Asked Questions About Ductless Mini-Splits
Are ductless mini-splits quieter than window units?
Yes. The unit runs almost silently indoors because the compressor and its fan sit outside the house. A window or wall unit packs the compressor into the same box as the indoor coil, and that is what produces the constant hum.
Do I need one air handler for every room?
For whole-home comfort, yes. Each air handler heats or cools a single room. Two to five handlers can connect to one outdoor condenser unit, so most homes cover the rooms that matter without a second condenser.
Can a ductless mini-split heat a Schaumburg home in winter?
Yes. Switch the thermostat from cool to heat and the refrigerant cycle runs in reverse, pulling heat out of the outdoor air and moving it inside. Warm air exists outside at any temperature above absolute zero, which is what makes winter heating possible.
What if my home has no ductwork at all?
That is the case a ductless mini-split was built for. The conduit line replaces ducts entirely, so there is nothing to route through walls, floors, or ceilings. Ask us about ductless mini-split installation in Elgin and we will walk you through what your home needs.
